A great alternative to retractable ladders:
lock
Burglar resistant
security
Protected against abuse
swap_horiz
Drop-down ladder

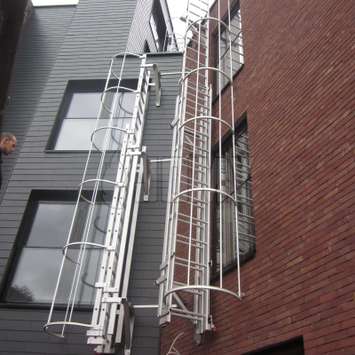

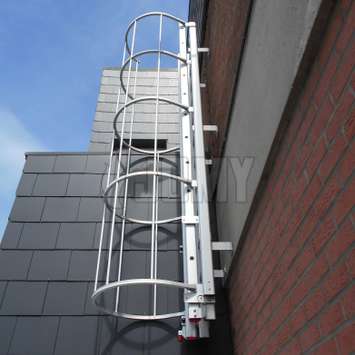

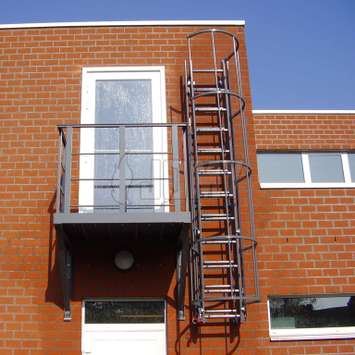

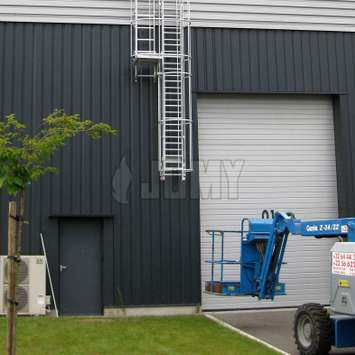

An extendable fire or escape ladder is a crucial investment for the safety of any building. When choosing the right ladder, there are several options to consider, including the choice between a fire ladder with or without a safety cage. Our extendable escape ladders use a soft descent and a ladder that is easy to retract after use. These extendable ladders are not only anti-theft but also create a free ground surface, making them ideal for buildings with limited space. Check out our examples.
- check Lower part or parts of the fire ladder slide out when desired.
- check The movement is balanced with counterweights: soft descent and easy to retract.
- check Single or multiple versions available.

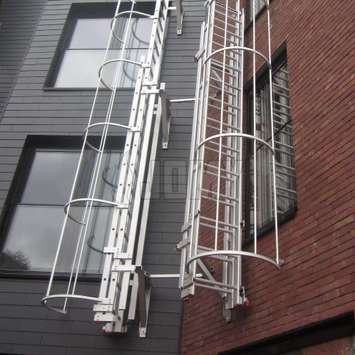

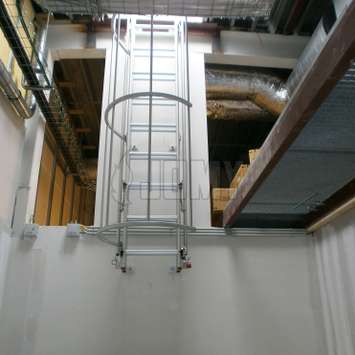

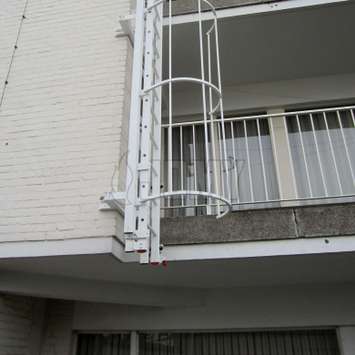

- check With or without a safety cage.

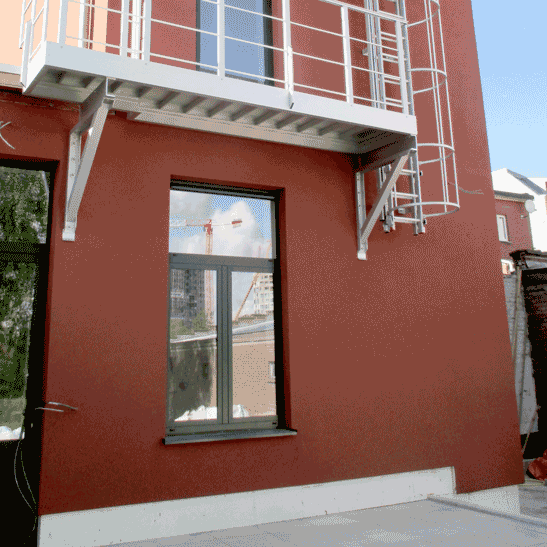

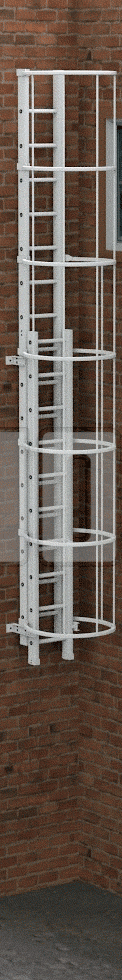

Watch the extendable fire ladder in action

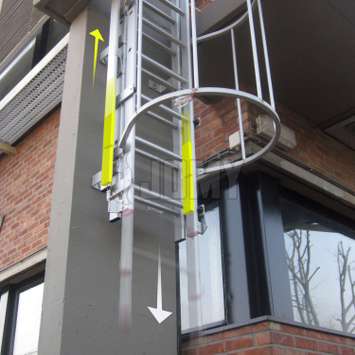

Counterbalanced
After it has been unlocked, the movable flight(s) of the ladder slides down smoothly thanks to its couterbalanced system. The ladder can then be easily closed by one hand only.
Due to its height, the multislide ladder may require the use of a stick for a complete closing.

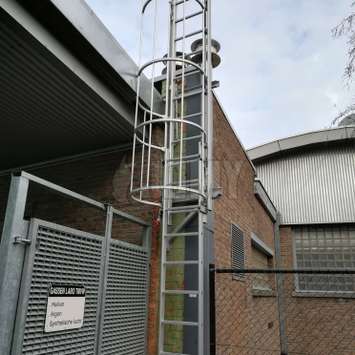

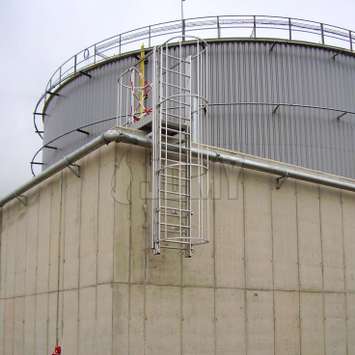

Burglar resistant and abuse preventing option

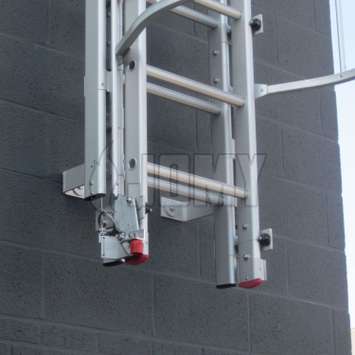

The ladder can be equipped with an opening handle placed at the desired location, for example: at the top of the ladder so it cannot be accessed from the ground, or inside the building and through the wall, etc. The opening mechanism can also be coupled with an alarm system for an even greater protection.

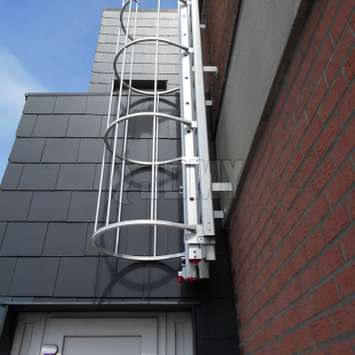

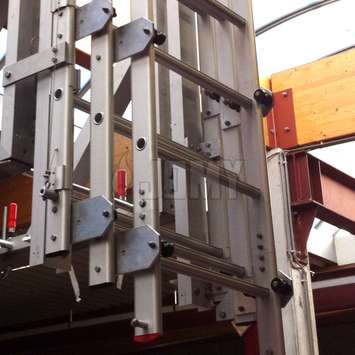

Compact
When closed the multislide ladder can take a height of only 6' 6.8" / 2 m (min.)!
The closed height of a single counterbalanced ladder is only equal to the clearance height + 2' 9" (84 cm).

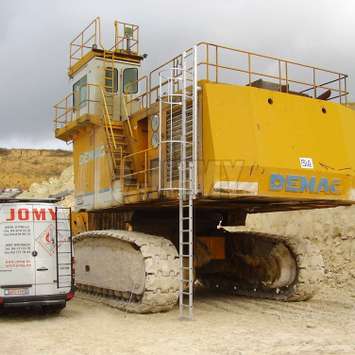

Reliable in all conditions
There are already more than 10.000 JOMY drop-down ladders installed all over the world to the great satisfaction of our customers.
Thanks to the detailed and ingenious engineering of the counterbalanced system and the use of non-corrosive materials, these ladders are guaranteed to be reliable in all kinds of weather and environments.
|
||||||||

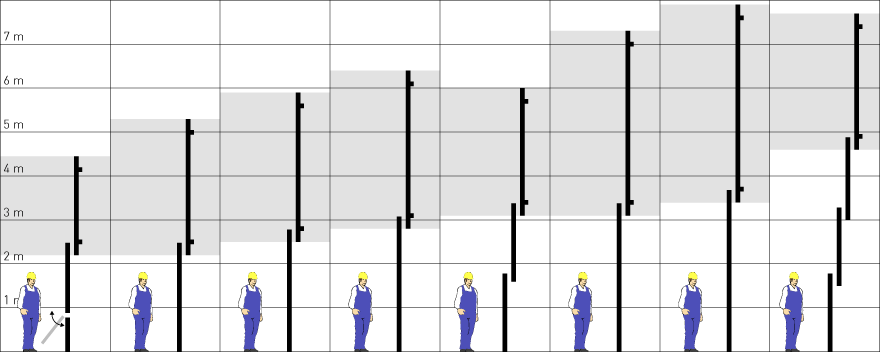

| Reference | FLIP-01 | SINGLE-01 | SINGLE-02 | SINGLE-03 | MULTI-01 | SINGLE-04 | SINGLE-05 | MULTI-02 |
| Clearance (mm) | 2240 | 2240 | 2520 | 2800 | 3083 | 3080 | 3360 | 4624 |
| Closed height (mm) | 2265 | 3105 | 3385 | 3665 | 2887 | 4225 | 4505 | 3131 |
| Reach height (mm) | 4505 | 5345 | 5905 | 6465 | 5970 | 7305 | 7865 | 7755 |
|
|
|||
| Reference | Clearance (mm) | Closed height (mm) | Reach height (mm) |
| FLIP-01 | 2240 | 2265 | 4505 |
| SINGLE-01 | 2240 | 3105 | 5345 |
| SINGLE-02 | 2520 | 3385 | 5905 |
| SINGLE-03 | 2800 | 3665 | 6465 |
| MULTI-01 | 3083 | 2887 | 5970 |
| SINGLE-04 | 3080 | 4225 | 7305 |
| SINGLE-05 | 3360 | 4505 | 7865 |
| MULTI-02 | 4624 | 3131 | 7755 |
- info Please note that these measurements can be made specific to your own requirements by our engineering department.

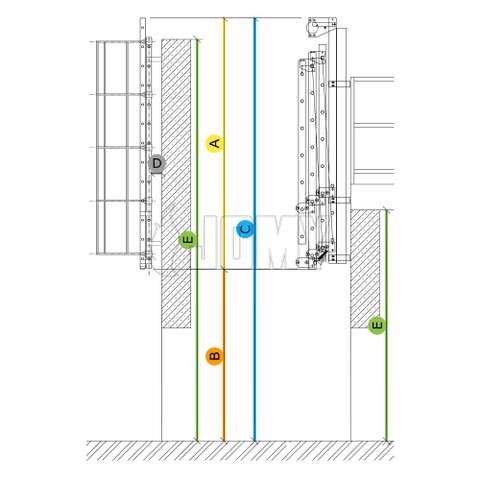

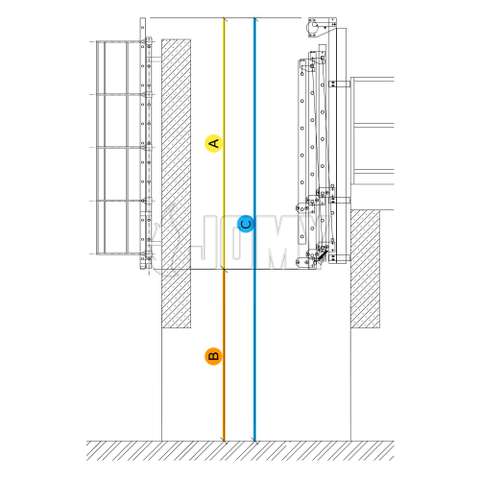

A = Closed ladder height
B = Clearance height
C = Reach height
D = Maximum distance from the wall
E = Height to cross
local_shipping
Direct shipping of kit from our factory in Wihogne (BE).
format_list_numbered
All necessary mounting parts are carefully packaged and listed.
